html5 canvas实现虚拟水槽物体流动动画效果

 2018-11-28  378  收藏  0 赞一个  0 真差劲  0 去评论

<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>html5 canvas虚拟水槽物体流动</title>
<style>
html, body {
	position: absolute;
	overflow: hidden;
	margin: 0;
	padding: 0;
	width: 100%;
	height: 100%;
	background:#cecece;
	touch-action: none;
	content-zooming: none;
}
canvas {
	position: absolute;
	width: 100%;
	height: 100%;
	cursor: crosshair;
}</style>
</head>
<body>

<canvas></canvas>

<script>
"use strict";
{
	class Grid {
		constructor(maxParticlesPerCell) {
			this.max = maxParticlesPerCell;
		}
		initSize(width, height, size) {
			this.width = (2 + width / size) | 0;
			this.height = (2 + height / size) | 0;
			this.size = size;
			this.cells = new Array(this.width * this.height * this.max);
			this.cellsSize = new Uint8Array(this.width * this.height);
		}
		fill(particles) {
			for (let p of particles) {
				const index =
					((1 + p.y / this.size) | 0) * this.width + ((1 + p.x / this.size) | 0);
				if (this.cellsSize[index] < this.max) {
					const cellPos = this.cellsSize[index]++;
					this.cells[index * this.max + cellPos] = p;
				}
			}
		}
		update(particles) {
			for (let i = 0; i < this.width * this.height; ++i) {
				for (let j = 0; j < this.cellsSize[i]; ++j) {
					const p = this.cells[i * this.max + j];
					const index =
						((1 + p.y / this.size) | 0) * this.width + ((1 + p.x / this.size) | 0);
					if (index !== i && this.cellsSize[index] < this.max) {
						this.cells[index * this.max + this.cellsSize[index]++] = p;
						this.cells[i * this.max + j] = this.cells[
							i * this.max + --this.cellsSize[i]
						];
					}
				}
			}
		}
	}
	class Contact {
		constructor(n, q, vx, vy) {
			this.n = n;
			this.q = q;
			this.vx = vx;
			this.vy = vy;
		}
	}
	class Particle {
		constructor(x, y) {
			this.x = x;
			this.y = y;
			this.px = x;
			this.py = y;
		}
		turbine() {
			const dx = pointer.x - this.x;
			const dy = pointer.y - this.y;
			const d = Math.sqrt(dx * dx + dy * dy);
			if (d < 2 * kRadius) {
				const angle = Math.atan2(dy, dx) + kRadius / (d + 1);
				this.x += Math.cos(angle);
				this.y += Math.sin(angle);
			}
		}
		integrate() {
			sun.collide(this);
			container.limit(this);
			if (pointer.isDown && !sun.drag) this.turbine();
			const x = this.x;
			const y = this.y;
			this.x += x - this.px;
			this.y += y - this.py + kGravity;
			this.px = x;
			this.py = y;
		}
		fluid() {
			// Ref Grant Kot Material Point Method http://grantkot.com/
			let pressure = 0;
			let presnear = 0;
			const neighbors = [];
			const xc = (1 + this.x / grid.size) | 0;
			const yc = (1 + this.y / grid.size) | 0;
			for (let x = xc - 1; x < xc + 2; ++x) {
				for (let y = yc - 1; y < yc + 2; ++y) {
					const index = y * grid.width + x;
					for (
						let k = grid.max * index, end = k + grid.cellsSize[index];
						k < end;
						++k
					) {
						const pn = grid.cells[k];
						if (pn !== this) {
							const vx = pn.x - this.x;
							const vy = pn.y - this.y;
							const slen = vx * vx + vy * vy;
							if (slen < kRadius * kRadius) {
								const vlen = slen ** 0.5;
								const q = 1.0 - vlen / kRadius;
								pressure += q * q;
								presnear += q * q * q;
								neighbors.push(new Contact(pn, q, vx / vlen * q, vy / vlen * q));
							}
						}
					}
				}
			}
			pressure = (pressure - kDensity) * 1.0;
			presnear *= 0.5;
			for (let p of neighbors) {
				const pr = pressure + presnear * p.q;
				const dx = p.vx * pr;
				const dy = p.vy * pr;
				p.n.x += dx;
				p.n.y += dy;
				this.x -= dx;
				this.y -= dy;
				if (p.q > kRendering) {
					ctx.moveTo(this.x, this.y);
					ctx.lineTo(p.n.x, p.n.y);
				}
			}
		}
	}
	class Circle {
		constructor(x, y, r) {
			this.x = x;
			this.y = y;
			this.px = x;
			this.py = y;
			this.dx = 0;
			this.dy = 0;
			this.r = r;
			this.drag = false;
			this.over = false;
		}
		anim() {
			const dx = pointer.x - this.x;
			const dy = pointer.y - this.y;
			if (Math.sqrt(dx * dx + dy * dy) < this.r) {
				if (!this.over) {
					this.over = true;
					canvas.elem.style.cursor = "pointer";
				}
			} else {
				if (this.over && !this.drag) {
					this.over = false;
					canvas.elem.style.cursor = "crosshair";
				}
			}
			if (this.drag) {
				this.x = pointer.ex + this.dx;
				this.y = pointer.ey + this.dy;
			}
			container.limit(this, this.r);
			const x = this.x;
			const y = this.y;
			this.x += this.x - this.px;
			this.y += this.y - this.py + 2 * kGravity;
			this.px = x;
			this.py = y;
			ctx.beginPath();
			ctx.arc(this.x, this.y, this.r, 0, 2 * Math.PI);
			ctx.fillStyle = "#334";
			ctx.fill();
		}
		collide(p) {
			const dx = p.x - this.x;
			const dy = p.y - this.y;
			const dist = Math.sqrt(dx * dx + dy * dy);
			if (dist < this.r * 1.2) {
				const fx = dx / dist;
				const fy = dy / dist;
				p.x += fx;
				p.y += fy;
				this.x -= 0.01 * fx;
				this.y -= 0.01 * (fy + 2 * Math.abs(fy));
			}
		}
	}
	const container = {
		init(scale) {
			this.ai = 0;
			this.scale = scale;
			this.borders = [
				new this.Plane(),
				new this.Plane(),
				new this.Plane(),
				new this.Plane()
			];
		},
		Plane: class {
			constructor() {
				this.x = 0;
				this.y = 0;
				this.d = 0;
			}
			distanceToPlane(p) {
				return (
					(p.x - canvas.width * 0.5) * this.x +
					(p.y - canvas.height * 0.5) * this.y +
					this.d
				);
			}
			update(x, y, d) {
				this.x = x;
				this.y = y;
				this.d = d;
			}
		},
		rotate() {
			const w = canvas.width;
			const h = canvas.height;
			const s = this.scale;
			const angle = Math.sin((this.ai += pointer.isDown ? 0 : 0.05)) * s * Math.min(1.0, h / w);
			const cos = Math.cos(angle);
			const sin = Math.sin(angle);
			this.borders[0].update(-sin, cos, -h * s);
			this.borders[1].update(cos, sin, -w * s);
			this.borders[2].update(-cos, -sin, -w * s);
			this.borders[3].update(sin, -cos, -h * s);
			ctx.save();
			ctx.fillStyle = "#fff";
			ctx.translate(w * 0.5, h * 0.5);
			ctx.rotate(angle);
			ctx.fillRect(-w * s, -h * s, w * s * 2, h * s * 2);
			ctx.restore();
		},
		limit(p, radius = 0) {
			for (let b of this.borders) {
				let d = b.distanceToPlane(p) + radius + 0;
				if (d > 0) {
					p.x += b.x * -d + (Math.random() * 0.1 - 0.05);
					p.y += b.y * -d + (Math.random() * 0.1 - 0.05);
				}
			}
		}
	};
	const canvas = {
		init() {
			this.elem = document.querySelector('canvas');
			this.resize();
			window.addEventListener("resize", () => canvas.resize(), false);
			return this.elem.getContext("2d", { alpha: false });
		},
		resize() {
			this.width = this.elem.width = this.elem.offsetWidth;
			this.height = this.elem.height = this.elem.offsetHeight;
			kRadius = Math.round(0.04 * Math.sqrt(this.width * this.height));
			grid.initSize(this.width, this.height, kRadius);
			grid.fill(particles);
			if (sun) sun.r = 1.5 * kRadius;
		}
	};
	const pointer = {
		init(canvas) {
			this.x = this.ex = 0;
			this.y = this.ey = 2000;
			this.isDown = false;
			window.addEventListener("mousemove", e => this.move(e, false), false);
			canvas.elem.addEventListener("touchmove", e => this.move(e, true), false);
			window.addEventListener("mousedown", e => this.down(e, false), false);
			window.addEventListener("touchstart", e => this.down(e, true), false);
			window.addEventListener("mouseup", e => this.up(e, false), false);
			window.addEventListener("touchend", e => this.up(e, true), false);
		},
		move(e, touch) {
			if (touch) {
				e.preventDefault();
				this.x = e.targetTouches[0].clientX;
				this.y = e.targetTouches[0].clientY;
			} else {
				this.x = e.clientX;
				this.y = e.clientY;
			}
		},
		down(e, touch) {
			this.isDown = true;
			this.move(e, touch);
			if (touch) sun.anim();
			if (sun.over) {
				sun.drag = true;
				this.ex = this.x;
				this.ey = this.y;
				sun.dx = sun.x - this.ex;
				sun.dy = sun.y - this.ey;
				if (!touch) canvas.elem.style.cursor = "move";
			}
		},
		up(e, touch) {
			this.isDown = false;
			if (!touch) canvas.elem.style.cursor = "crosshair";
			sun.drag = false;
			sun.over = false;
		},
		ease(n) {
			this.ex += (this.x - this.ex) * n;
			this.ey += (this.y - this.ey) * n;
		}
	};
	const initParticles = num => {
		const s = container.scale;
		let x = canvas.width * s * 0.5;
		let y = canvas.height * s * 0.5;
		for (let i = 0; i < num; ++i) {
			particles.push(new Particle(x, y));
			x += kRadius / 2.5;
			if (x > canvas.width * (1 - s * 0.5)) {
				x = canvas.width * s * 0.5;
				y += kRadius / 3;
			}
		}
		grid.fill(particles);
	}
	let sun;
	let kRadius;
	const particles = [];
	const grid = new Grid(100);
	const ctx = canvas.init();
	pointer.init(canvas);
	container.init(0.35);
	const kGravity = 0.04;
	const kDensity = 3;
	const kRendering = 0.45;
	initParticles(1200);
	sun = new Circle(
		canvas.width * 0.5,
		canvas.height * 0.5 - kRadius,
		1.5 * kRadius
	);
	const run = () => {
		requestAnimationFrame(run);
		ctx.fillStyle = "#bebebf";
		ctx.fillRect(0, 0, canvas.width, canvas.height);
		pointer.ease(0.25);
		container.rotate();
		for (let p of particles) p.integrate();
		grid.update(particles);
		ctx.beginPath();
		ctx.strokeStyle = "#556";
		for (let p of particles) p.fluid();
		ctx.stroke();
		sun.anim();
	};
	run();
}
</script>
</body>
</html>

运行代码 全选代码 复制代码 清除代码 恢复代码

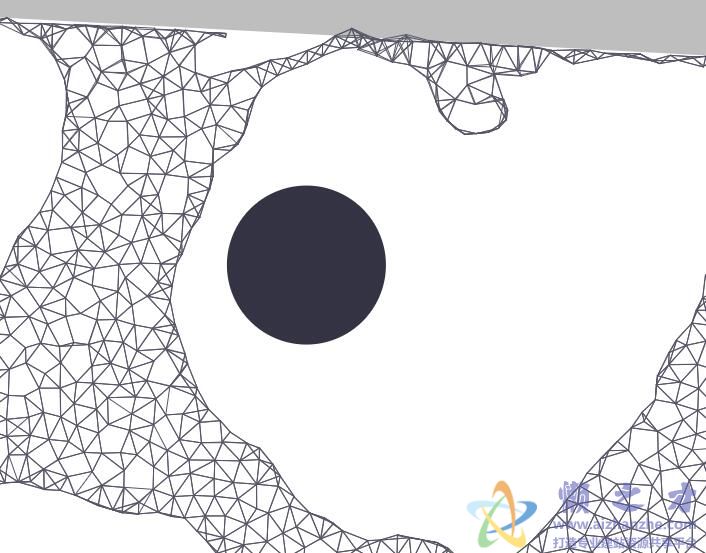

预览图片

这是一款基于html5 canvas实现虚拟水槽物体流动动画效果源码。画面中矩形的水槽空间中由无数多边形模拟出的水流在水槽的左右摇晃之下不停地呈现流动的动画效果，水槽中黑色的球体则会在水中伴随流体运动。通过鼠标拖动还可控制小球的移动以及水流动。建议使用支持HTML5与css3效果较好的火狐(Firefox)或谷歌(Chrome)等浏览器预览本源码。
