jQuery渐显效果的人物多级关系图

 首页 > 网页特效 > 层和布局 > jQuery渐显效果的人物多级关系图

jQuery渐显效果的人物多级关系图

 2018-07-23  468  收藏  0 赞一个  0 真差劲  0 去评论

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>jQuery渐显效果的人物多级关系图</title>
<meta http-equiv="content-type" content="text/html;charset=utf-8">
<style type="text/css">
#box{width:500px;height:500px;position:relative;}
.host{position:absolute;width:100px;height:50px;line-height:50px;text-align:center;color:#000000;background-color:#eeeeee;border:#000000 1px solid;font-weight:bolder;}
.guest{position:absolute;width:80px;height:40px;line-height:40px;text-align:center;color:#999999;background-color:#FFFFFF;border:#000000 1px solid;cursor:pointer;}
.relationship{position:absolute;width:60px;height:20px;color:#aaa;line-height:20px;font-size:12px;text-align:center;}
</style>
<script src="http://www.aizhanzhe.com/Public/jquery1.3.2.js"></script>
<script type="text/javascript">
var relationName = [
        {name:"成龙",friend:[
                {name:"房祖名",relationship:"父子"},
                {name:"林凤娇",relationship:"夫妻"},
                {name:"吴绮莉",relationship:"绯闻"},
                {name:"徐静蕾",relationship:"激吻"}]
        },
        {name:"房祖名",friend:[
                {name:"成龙",relationship:"父子"},
                {name:"林凤娇",relationship:"母子"},
                {name:"方大同",relationship:"情敌"},
                {name:"薛凯琪",relationship:"女友"},
                {name:"陈坤",relationship:"朋友"},
                {name:"赵薇",relationship:"朋友"}]
        },
        {name:"林凤娇",friend:[
                {name:"成龙",relationship:"夫妻"},
                {name:"房祖名",relationship:"母子"},
                {name:"吴绮莉",relationship:"情敌"}]
        },
        {name:"吴绮莉",friend:[
                {name:"成龙",relationship:"绯闻"},
                {name:"林凤娇",relationship:"情敌"},
                {name:"吴卓林",relationship:"母女"}]
        },
        {name:"徐静蕾",friend:[
                {name:"李亚鹏",relationship:"电影"},
                {name:"韩寒",relationship:"娱乐圈"},
                {name:"成龙",relationship:"激吻"},
                {name:"黄立行",relationship:"电影"}]
        },
        {name:"方大同",friend:[
                {name:"房祖名",relationship:"情敌"},
                {name:"薛凯琪",relationship:"否认拍拖"},
                {name:"林宥嘉",relationship:"歌手"},
                {name:"韩庚",relationship:"演唱会"}]
        },
        {name:"薛凯琪",friend:[
                {name:"方大同",relationship:"否认拍拖"},
                {name:"房祖名",relationship:"女友"}]
        }
]
var relation = {
        radius:150,
        boxW:500,
        boxH:500,
        hostW:100,
        hostH:50,
        guestW:80,
        guestH:40,
        relationW:60,
        relationH:20,
        angle:0,
        id:"box",
        init:function(array,n){//传入参数1：数组 参数2：第几个
        this.array = array;
                this.appendHost(this.array,n);
                this.appendQuest(this.array,n);
                this.appendRelationShip(this.array,n);
        },
        appendHost:function(array,n){
                var box = $("#"+this.id);
                var host ="<span class='host'>"+array[n].name+"</span>";
                box.append(host)
                this.postHost();
        },
        postHost:function(){
                var x = (this.boxW - this.hostW)/2;
                var y = (this.boxH - this.hostH)/2;
                $(".host").css({
                        left:x,
                        top:y
                })
        },
        appendQuest:function(array,n){
                var box = $("#"+this.id);
                var guests="";
                var that = this;
                for(var i=0; i<array[n].friend.length; i++){
                        guests+="<span class='guest'>"+array[n].friend[i].name+"</span>";
                }
                $(guests).appendTo(box);
                $(".guest").live("click",function(){
                        that.move(that,this);
                })
                this.postQuest();
        },
        postQuest:function(){
                var guests = $(".guest");
                var that = this;
                guests.each(function(i){
                        guests.eq(i).css({
                                left:that.setQuestPose(guests.length,that.radius,i,that.guestW,that.guestH,that.angle).left,
                                top:that.setQuestPose(guests.length,that.radius,i,that.guestW,that.guestH,that.angle).top
                        }).attr("angle",i/guests.length)
                })
        },
        setQuestPose:function(n,r,i,w,h,d){//n代表共几个对象 r代表周长 i代表第几个对象 w代表外面对象的宽带 h代表外面对象的高度 d代表其实角度
                var p = i/n*Math.PI*2+Math.PI*2*d;
                var x = r * Math.cos(p);
                var y = r * Math.sin(p);
                return {
                        "left":parseInt(this.boxW/2+ x - w/2),
                        "top":parseInt(this.boxH/2 + y - h/2)
                }
        },
        appendRelationShip:function(array,n){
                var box = $("#"+this.id);
                var relation="";
                for(var i=0; i<array[n].friend.length; i++){
                        relation+="<span class='relationship'>"+array[n].friend[i].relationship+"</span>";
                }
                box.append(relation);
                this.postRelationShip();
        },
        postRelationShip:function(){
                var guests = $(".relationship");
                var that = this;
                guests.each(function(i){
                        guests.eq(i).css({
                                left:that.setQuestPose(guests.length,that.radius/2,i,that.relationW,that.relationH,that.angle).left,
                                top:that.setQuestPose(guests.length,that.radius/2,i,that.relationW,that.relationH,that.angle).top
                        })
                })
        },
        move:function(t,i){
                var n = $(".guest").index($(i));
                this.angle = parseFloat($(i).attr("angle"))+0.5;
                this.delect(n);
                this.moveHost(i);
                this.moveQuest(i);
                this.moveRelationship(i);
                this.changeClass();
                setTimeout(function(){t.newAppend(i)},500);
        },
        newAppend:function(i){
                this.newAppendGuest(i,"guest","name",this.guestW,this.guestH,this.radius);
                this.newAppendGuest(i,"relationship","relationship",this.relationW,this.relationH,this.radius/2);

        },
        newAppendGuest:function(i,className,name,w,h,r){
                var host = $(i).html();
                var guest = $(".guest").html();
                var box = $("#"+this.id);
                var that = this;
                var next=0;
                for(var i=0; i<this.array.length; i++){
                        if(host == this.array[i].name){
                                for(var j=0;j<this.array[i].friend.length; j++){
                                        if(guest !== this.array[i].friend[j].name){
                                                next++;
                                                var guests ="<span class='"+className+"'>"+this.array[i].friend[j][name]+"</span>";
                                                $(guests).appendTo(box).css({
                                                        left:that.setQuestPose(this.array[i].friend.length,r,next,w,h,that.angle).left,
                                                        top:that.setQuestPose(this.array[i].friend.length,r,next,w,h,that.angle).top
                                                }).attr("angle",that.angle+next/this.array[i].friend.length).hide().fadeIn(1000);
                                        }
                                }
                        }
                }
        },
        moveHost:function(i){
                var hLeft = parseInt($(".host").css("left")) + this.hostW/2;
                var hTop = parseInt($(".host").css("top"))  + this.hostH/2;
                var gLeft = parseInt($(i).css("left")) + this.guestW/2;
                var gTop = parseInt($(i).css("top")) + this.guestH/2;
                var l = gLeft - hLeft;
                var t = gTop - hTop;
                var left = (hLeft - l - this.guestW/2)+"px";
                var top = (hTop - t - this.guestH/2)+"px";
                this.animate(".host",left,top);
        },
        moveRelationship:function(i){
                var hLeft = parseInt($(".host").css("left")) + this.hostW/2;;
                var hTop = parseInt($(".host").css("top")) + this.hostH/2;
                var gLeft = parseInt($(".relationship").css("left")) + this.relationW/2;
                var gTop = parseInt($(".relationship").css("top"))  + this.relationH/2;
                var l = gLeft - hLeft;
                var t = gTop - hTop;
                var left = (hLeft - l - this.relationW/2)+"px";
                var top = (hTop - t - this.relationH/2)+"px";
                this.animate(".relationship",left,top);
        },
        moveQuest:function(i){
                var left = $(".host").css("left");
                var top = $(".host").css("top");
                this.animate(i,left,top);
        },
        delect:function(n){
                $(".guest").slice(0,n).remove();
                $(".guest").slice(1).remove();
                $(".relationship").slice(0,n).remove();
                $(".relationship").slice(1).remove();
        },
        animate:function(i,left,top){
                $(i).animate({
                        left:left,
                        top:top
                },500);
        },
        changeClass:function(){
                var that =this;
                $(".guest").addClass("abcdef").removeClass("guest");
                $(".host").addClass("guest").removeClass("host").attr("angle",that.angle);
                $(".abcdef").addClass("host").removeClass("abcdef").attr("angle",null);
        }
}
$(document).ready(function(){
        relation.init(relationName,0)
})
</script>
</head>
<body>
看不到效果，刷新一下就可以了；<br>
<div id="box"></div>


<!-- 以下与演示代码无关,使用时请移除. -->
	<style type="text/css">
	#azz_discription{ width:600px; height:auto; border:1px dashed #CCC; margin:0 auto; padding:10px;}
	#azz_discription p{ line-height:25px;}
	</style>
	<div style="height:20px;"></div>
	<div id="azz_discription">
	<p style="text-align:center;">来源：<a href="http://www.aizhanzhe.com" target="_blank">懒之才</a>　代码整理：<a href="http://www.aizhanzhe.com" target="_blank">懒之才</a></p>
	<p>&hearts;尊重他人劳动成果，转载请自觉注明出处！注：此代码仅供学习交流，请勿用于商业用途。</p>
	</div>

<!-- 以上与演示代码无关,使用时请移除. -->



</body>
</html>

运行代码 全选代码 复制代码 清除代码 恢复代码

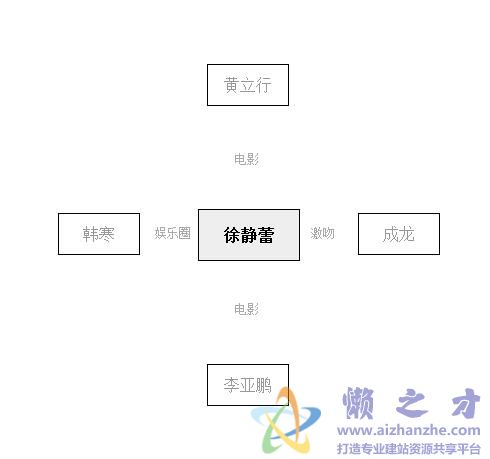

预览图片

jQuery渐显效果的人物多级关系图，setQuestPose:function中的n代表共几个对象 r代表周长 i代表第几个对象 w代表外面对象的宽带 h代表外面对象的高度 d代表其实角度，测试时请注意，如果右下角提示有错误，请重新刷新页面即可。
